product Purpose:

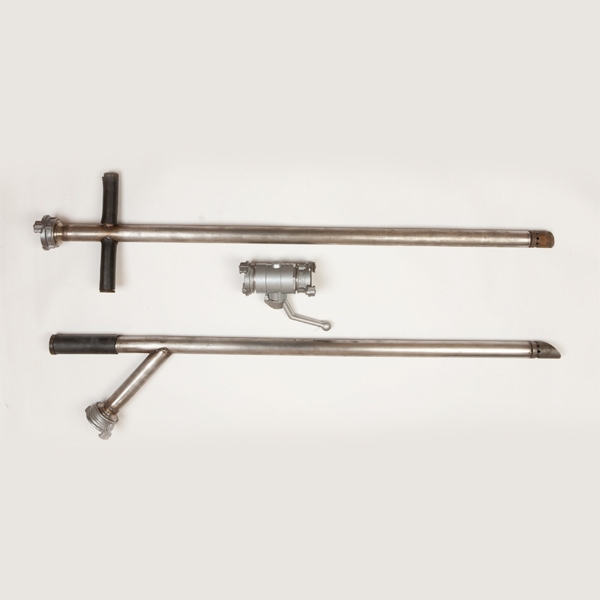

the Barrel-Lom (trunk-punch) HP-50-1 and LS-50-2 with one and two handles respectively manufactured by the Company «Spotli”.
the Barrel-scrap is designed to work on water and aqueous solution of foaming agent in the regions with moderate and cold climate, placement category 1 to GOST 15150.
the Barrel-Lom is designed for the mechanical shock of opening (moving apart) light constructions and supply of fire extinguishers (water, aqueous solution of foaming agent) in the cavity (cavities) of buildings, metal sheds, cars, roofs, basements of buildings, stacks of timber in the fire and smoldering pockets of burning inside bulk materials or peat in the places of its extraction, processing and storage and create water curtains to reduce temperatures and protect personnel from heat flux in fire conditions.
the Barrel-Lom (trunk-punch) is made in accordance with the technical requirements TU 48548-007-66859250-2014.
Basic parameters of the barrel-scrap given in the following table:
specifications:
|
product Name |
parameter Value |
|||
|
LS-50.1-1 |
ЛС50.1-2 |
LS-50.2-1 |
LS-50.2-2 |
|
| Working pressure before the barrel is scrap, MPa. | 0,4 - 0,6 | |||
| the Flow of the spray jet, l/s, not less | 4,0 | |||
| Range of the spray jet (max at drops), the horizontal arrangement of the barrel-scrap m | 11,0 | |||
| the Effective range of the spray jet, the horizontal arrangement of the barrel-scrap m | 4,0 | |||
| Angle torch, protective curtains, deg, not less | 140 | |||
| the diameter of the torch's protective veil, the horizontal arrangement of the barrel-scrap m | 14,0 | |||
| Irrigated area in the vertical location of the barrel is scrap, m | 150,0 | |||
| the outlet Diameter, mm | 6 ± 0.1 | |||
| Material: - the trunk - tip/shock disk (LS-50-1) tip hardness (HRC) |
Stainless steel. steel 12KH18N10T St45 48-54 |
St3 St45 48-54 |
||
| tube Diameter/wall thickness of pipe, mm | 38,0/3,0 | |||
| overall dimensions, mm, not more: length X width (LS-50-1/LS-50-2) | 1200/1200 ±10 X 230/300 ± 10,0 | |||
| Mass PM-50-1/LS-50-2, kg, not more than | 3,6 ± 0,1/3,2 ± 0,1 | |||
| Size of coupling head | HM-50 | |||
| Diverter valve (optional) | Material: aluminum/brass | |||
Barrel-scrap simple in design and reliable in operation. Warranty period 12 months from the date of putting the product to work. Specified service life of at least 4 years from the date of delivery to the consumer. The product is not subject to mandatory certification. Supplied with operation Manual and Passport.
Barrel-scrap is included in the ‘Standards of service poliennali fire-technical equipment and rescue equipment for the main and special fire vehicles” of EMERCOM of Russia.
Code for ordering: ЛС-50-1
