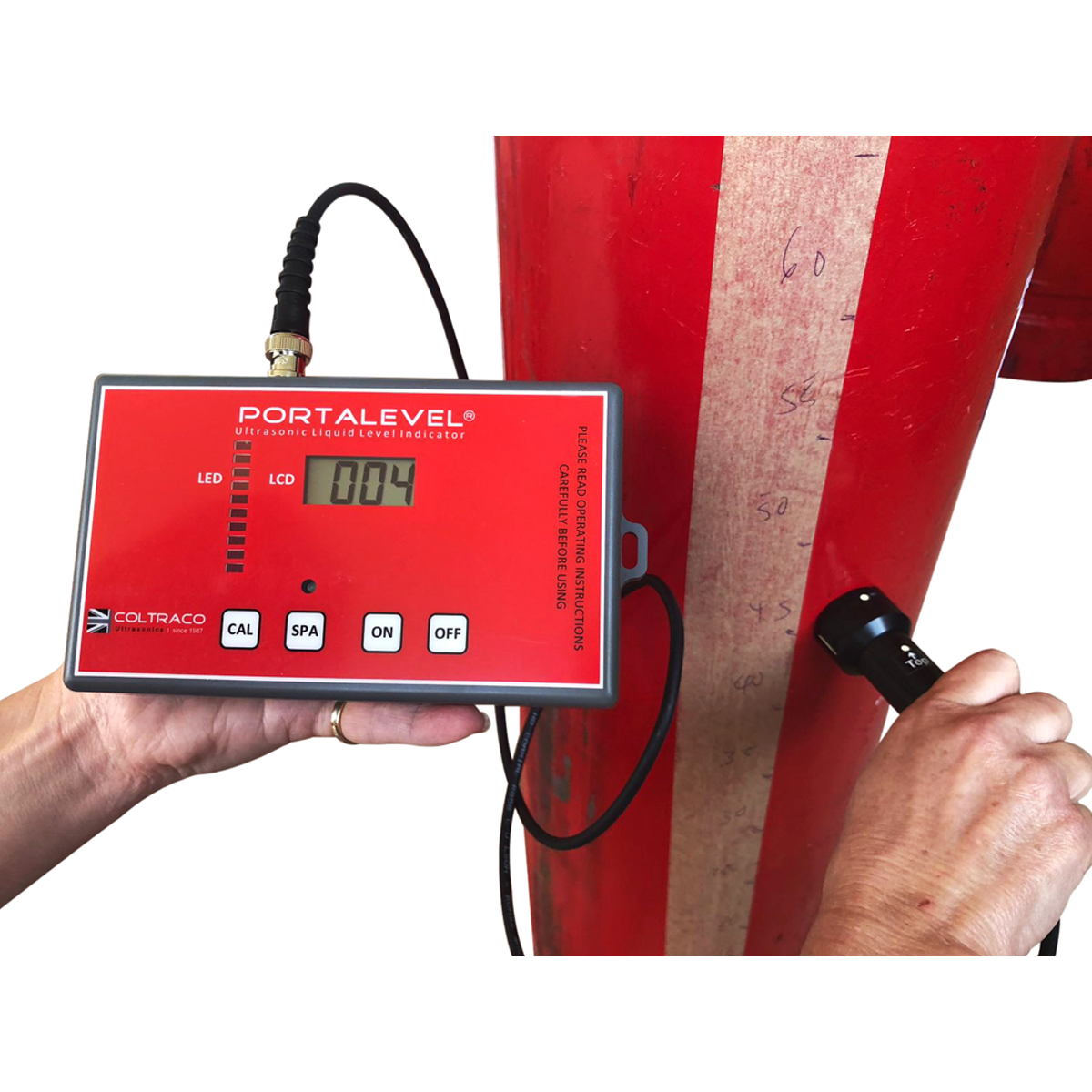

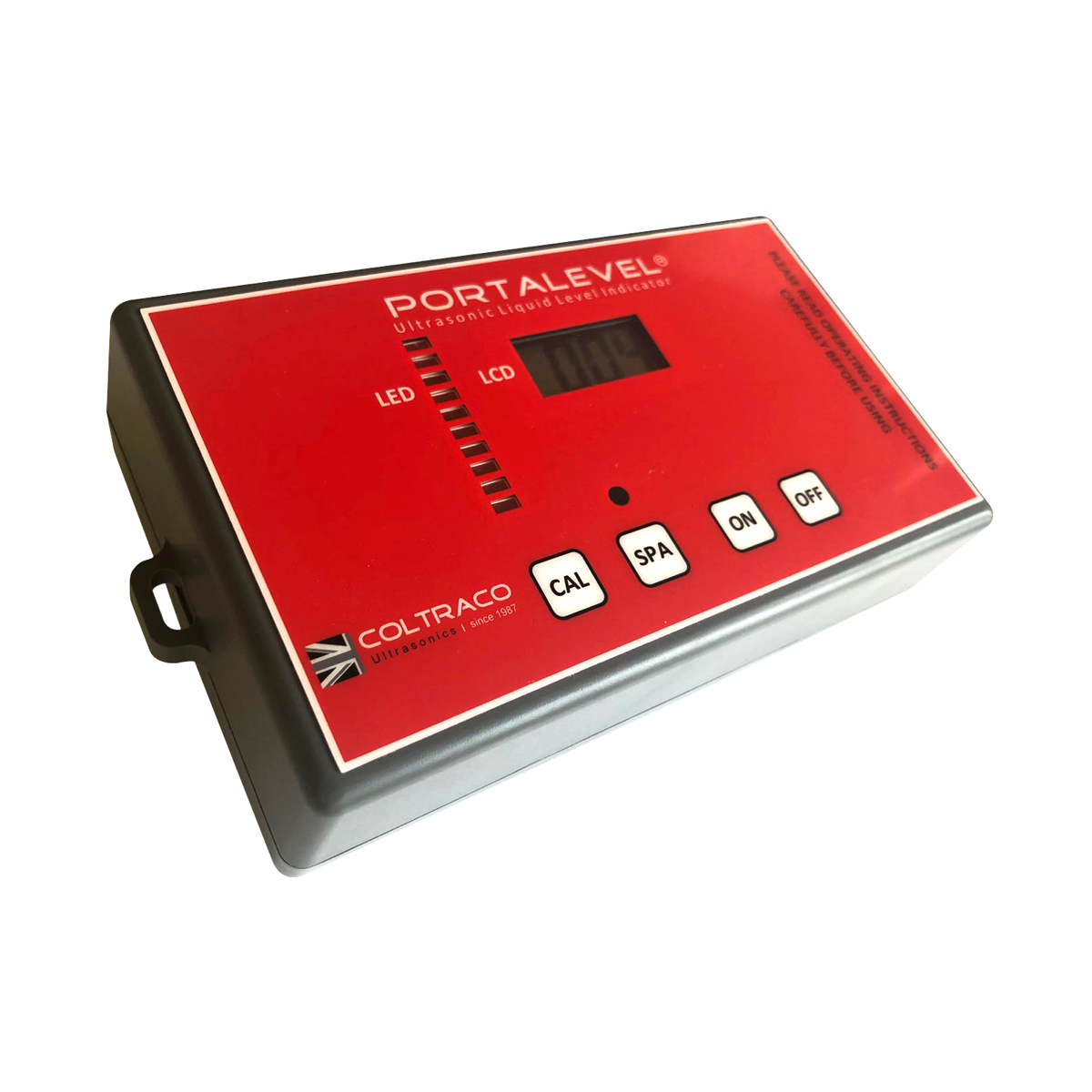

Low-cost Portable 6th Generation Ultrasonic Liquid Level Indicator (LLI)
Portalevel Original ® is the ideal solution for customers who require infrequent testing, low volume cylinders and those that need to be budget-friendly.
Portalevel Original ® can test a full range of fire extinguishing agents, including CO2, FM200 and NOVEC 1230 ® for all cylinders, up to approximately 150 kg. It is a very easy-to-use device that does not require intensive training and is still equipped with "auto-calibration" features to ensure speed of use and minimal user error. It is also available in the Marine package, which provides a low-cost solution for the shipping industry.
It provides an ideal platform for customers who want to inspect their fire systems, for those companies that want to work in the market for fire safety services, or for those who need a spare device. The device has a 3-year warranty.
P/N: 2290334 NSN: 6680-99-275-5292
Specification
| Overall dimensions | Height: 98 mm (3.86 in) Width: 158mm (6.22 in) Depth: 45.5 mm (1.80 in) Weight: 420 grams (14.82 oz) |
|---|---|
| Accuracy | + / - 3 mm (1/8 inch) |
| Testable extinguishing Agents | CO2, H20, suitable for most FM-200 ™ and NOVEC ™ 1230, HFC-225 and HFC-227ea cylinders |
|
Sensor
|
Dryness sensor TX / RX head with a diameter of 14 mm contained inside a magnetized sensor-applicator Connected by BNC connectors to a 1 m long coaxial cable. |
| Power supply | 4 x 1.5 V AA batteries (10 hours battery life) |
| < p>Display
|
Digital LCD Display with LED bar graph |
| Operating Temperature < br /> Relative Humidity | -20 & deg; C to + 70 & deg; C (68 & deg; F to 158 & deg; F) -5% - 95% |
| Warranty | Main unit: 3 years warranty Sensor: 1 year warranty |
| Certificates | Approved Classification society-RINA CE UKAS ISO 9001: 2015 |
| Delivery Contents | 1 Portalevel Original Block 1 dry sensor Ultrasonic gel 1 sturdy carrying bag Calibration certificate User Manual |
